Mineralogy of Wales

Namuwite

Crystal System: Hexagonal
Formula: (Zn,Cu)4SO4(OH)6.4H2O
Status of Occurrence: Confirmed Occurrence - Type Locality In Wales
Distribution: Rare
Chemical Composition: Zinc copper sulphate hydroxide hydrate
Method(s) of Verification: Aberllyn Mine - type specimen, characterized by XRD & chemical analyses (AAS & TGA); Dylife Mine - XRD (NHM, 7529F); Frongoch Mine - XRD (NHM, see Green et al., 1996); Llywernog Mine - XRD (Wirth, 1993).
Chemical Group:
  • Sulphates
Geological Context:
  • Supergene : post-mining oxidation & weathering deposits
Introduction: namuwite is a very rare secondary mineral species named in honour of the National Museum of Wales, the institution where the mineral was first discovered. Namuwite is a post-mining phase, typically formed through the oxidation of sphalerite-bearing veinstone in mine workings and within zinc- and copper-rich mine dumps.
Occurrence in Wales: the type specimen of namuwite from the Aberllyn Mine in the Llanrwst Orefield in Gwynedd, North Wales was acquired by the National Museum of Wales in the 1920s. Not until the late 1970s, did researchers, looking for nickeloan hydrozincite realise that a new species was present. Only this one specimen is known to exist from this mine. During the 1980s and 90s mineral collectors interested in the unusual secondary minerals which, form attractive microcrystals in weathered veinstone on mine dumps from the Central Wales Orefield discovered namuwite at three more sites (Wirth, 1993; Bevins, 1994; Green et al., 1996). All of these recent finds show namuwite as small aggregates intimately associated with other post-mining secondary species, but rarely display crystals to 0.5 mm – large for the species. Namuwite remains a very rare mineral in Wales and requires experience to identify it from similar blue-green secondary species.
Key Localities:

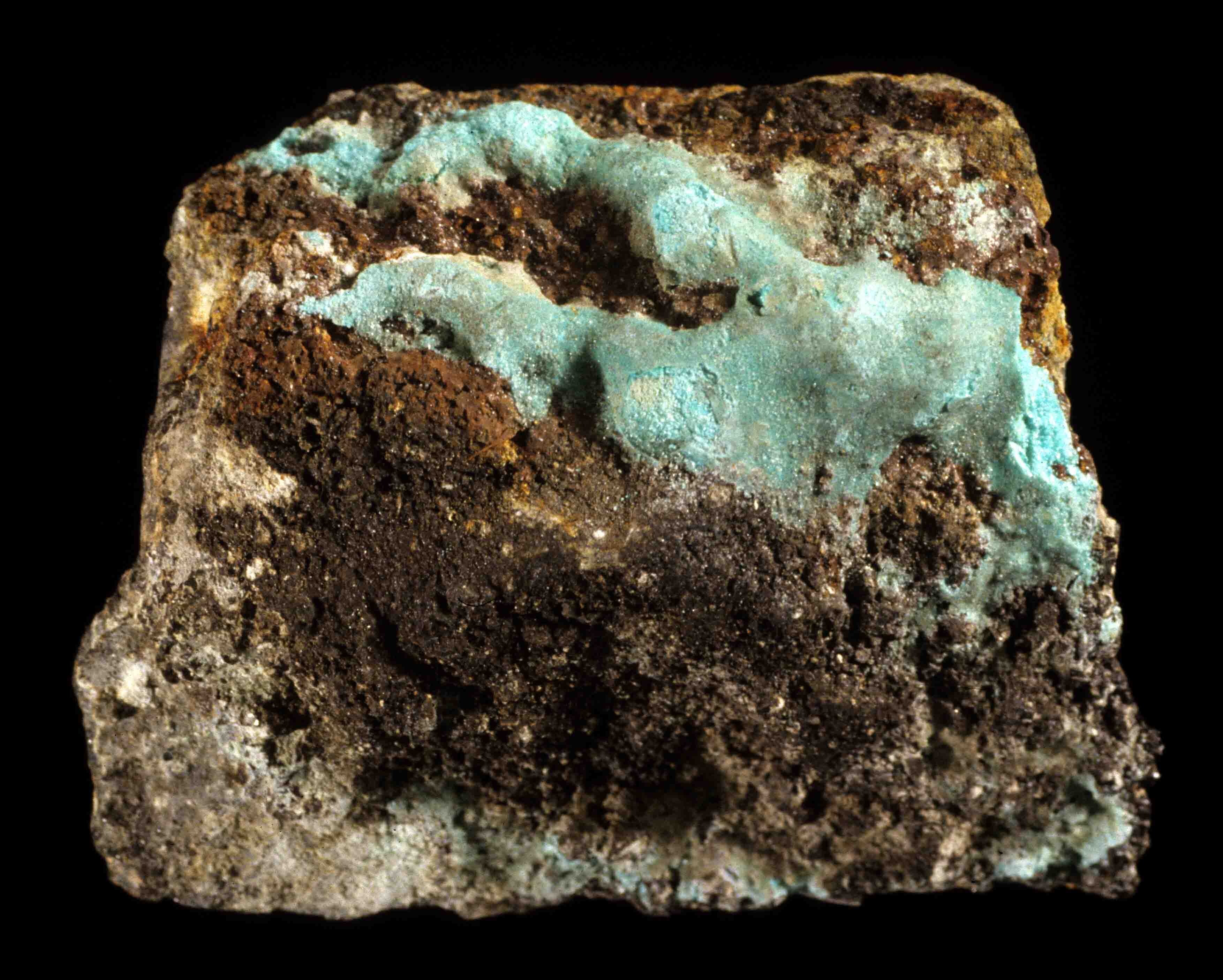

  • Aberllyn Mine, Llanrwst Orefield, Gwynedd: only one specimen (NMW 27.111.GR.414) is known from this, the type locality. On this, namuwite is present as minute (< 60 μm across) hexagonal plates aggregated into an area 1.5 x 5.0 cm and up to 0.5 cm thick on hydrozincite coating sphalerite-bearing breccia (Bevins et al., 1982).
  • Dylife Mine, Penegoes, Powys: namuwite occurs, associated with schulenbergite on altered sphalerite, forming translucent, platy, blue-green hexagonal crystals (Bevins, 1994).
  • Frongoch Mine, Devil's Bridge, Ceredigion: very rare, milky, pale blue to pale blue-green pseudohexagonal platy crystals to 0.5 mm and rosetted crystal clusters on quartz-galena veinstone (Wirth, 1993; Green et al., 1996). At Frongoch, namuwite is clearly post-mining in origin and late in the paragenesis, typically overgrowing langite, wroewolfeite, susannite or hydrocerussite (Green et al., 1996).
  • Llywernog Mine, Ponterwyd, Ceredigion: namuwite has been collected from the mine dumps by S. Rust (British Micromount Society Newsletter no. 35).
References:
  • Bevins, R.E., 1994 A Mineralogy of Wales  National Museum of Wales, Geological Series No. 16, Cardiff, 146pp.
  • Bevins, R.E., Turgoose, S., & Williams, P.A., 1982a Namuwite, (Zn,Cu)4SO4(OH)6.4H2O, a new mineral from Wales.  Mineralogical Magazine, 46, 51-54.
  • Green, D.I., Rust, S.A. & Mason, J.S., 1996 Classic British mineral localities: Frongoch Mine, Dyfed.  UK Journal of Mines & Minerals, 17, 29-38.
  • Wirth, M., 1993 Recent additions (Nos. 1301-1400) to the BMS collection.  British Micromount Society Newsletter, No. 35, 15-16.
