Mi ddechreues i sgrifennu post hir am orielau, ond beth ddois i yma i'w ddweud yw: dw i wedi mwynhau arddangosfa Mi Wela i... Natur yn Amgueddfa Genedlaethol Caerdydd, sydd ar agor tan fis Ebrill 2015. Bob tro dw i wedi ymweld, mae'r lle wedi bod yn llawn teuluoedd, sgyrsiau, a phlant wedi gwisgo fel gwyddonwyr a thrychfilod, yn sboncio o un cesyn arddangos i'r llall.

Llun clou iawn o flaen un o'n gweithgareddau rhyngweithiol, er mwyn ceisio osgoi amharu ar breifatrwydd ein hymwelwyr!

Rho Mi wela i... Natur gyfle i ni weld y byd o safbwynt gwyddonydd, ystlum a phry. Yn wir, cyn belled â dy fod o dan 10, galli wisgo i fyny fel un cyn archwilio'r sbesimenau o'r casgliad trychfilod, cwrel wedi'i brintio ar argraffydd 3D, cwisiau rhyngweithiol a gweithgareddau. Mae'r sgrîn feicroscôp ryngweithiol enfawr soniodd David amdani yn ei flog yn eistedd o flaen wal wydr brydferth o sleidiau, o'r 100 mlynedd diwethaf. I'r rhai ohonoch sy'n hoffi chwarae labordy, mae yna feicroscôp gwyddonydd ar gael hefyd, gyda bwrdd troelli llawn sleidiau i'w harchwilio.

Mae'r tîm Mi Wela i... wedi bod yn teithio ar hyd Cymru gyda'u gwrthrychau hynod - er enghraifft, dyma @CardiffCurator yn gafael mewn gwrthrych anarferol iawn yn yr Eisteddfod:

Mae @CardiffCurator wedi denu lot o sylw gyda'i chragen enfawr ar stondyn @AmgueddfaCymru yn yr @eisteddfod heddi! pic.twitter.com/cxsOTVhg7r

— Gareth Bonello (@ghbonello) August 7, 2014

Bydd Fflach-Amgueddfa Mi Wela i... yn ymddangos am y tro olaf eleni, yng nghanolfan siopa Capitol yng Nghaerdydd, rhwng y 28ain a'r 30ain o Awst. Ymysg y gemwaith, y paneidiau a'r sêl-diwedd-tymor, cewch ddarganfod sgorpionau, bwystfilod bychain, ac wrth gwrs, cragen sy'n fwy na'ch pen! Galwch heibio rhwng 11am a 3pm i weld beth welwch chi!

We are here @Capitol_Cardiff with our pop up #IspyNature exhibition Come and meet our scientists @Museum_Cardiff pic.twitter.com/3YikdnBPfp

— Cardiff Curator (@CardiffCurator) July 24, 2014

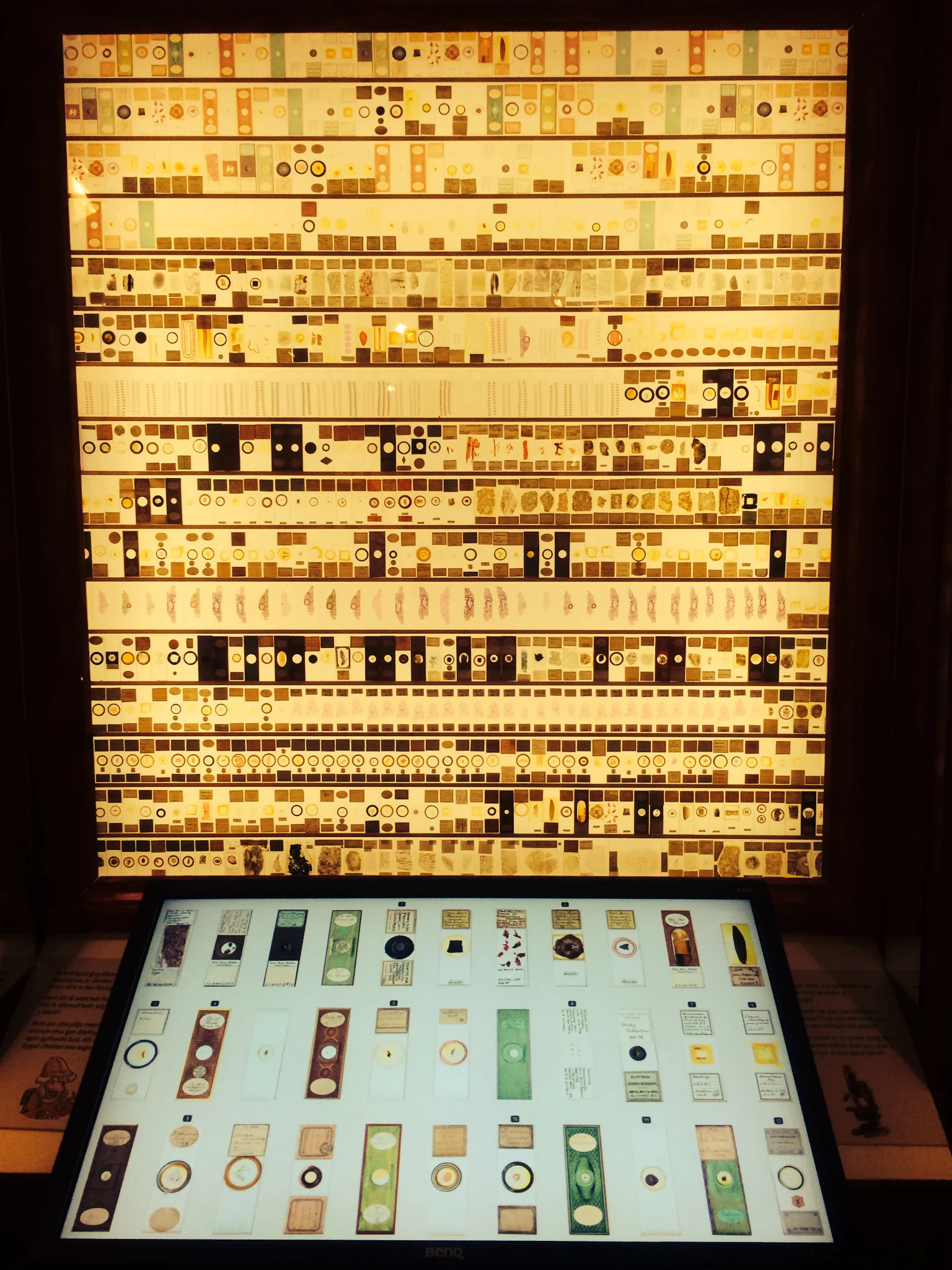

There is an exhibition showing at National Museum Cardiff called: I-Spy…Nature (until April 2015). One of the touch screens (picture 1) focuses on a selection of diverse, interesting and beautiful biological and geological slides from the Museum’s Natural History Collections. This blog is about the small aspects of the touch screen that I was involved with; plain and simple.

Resources & Outlines

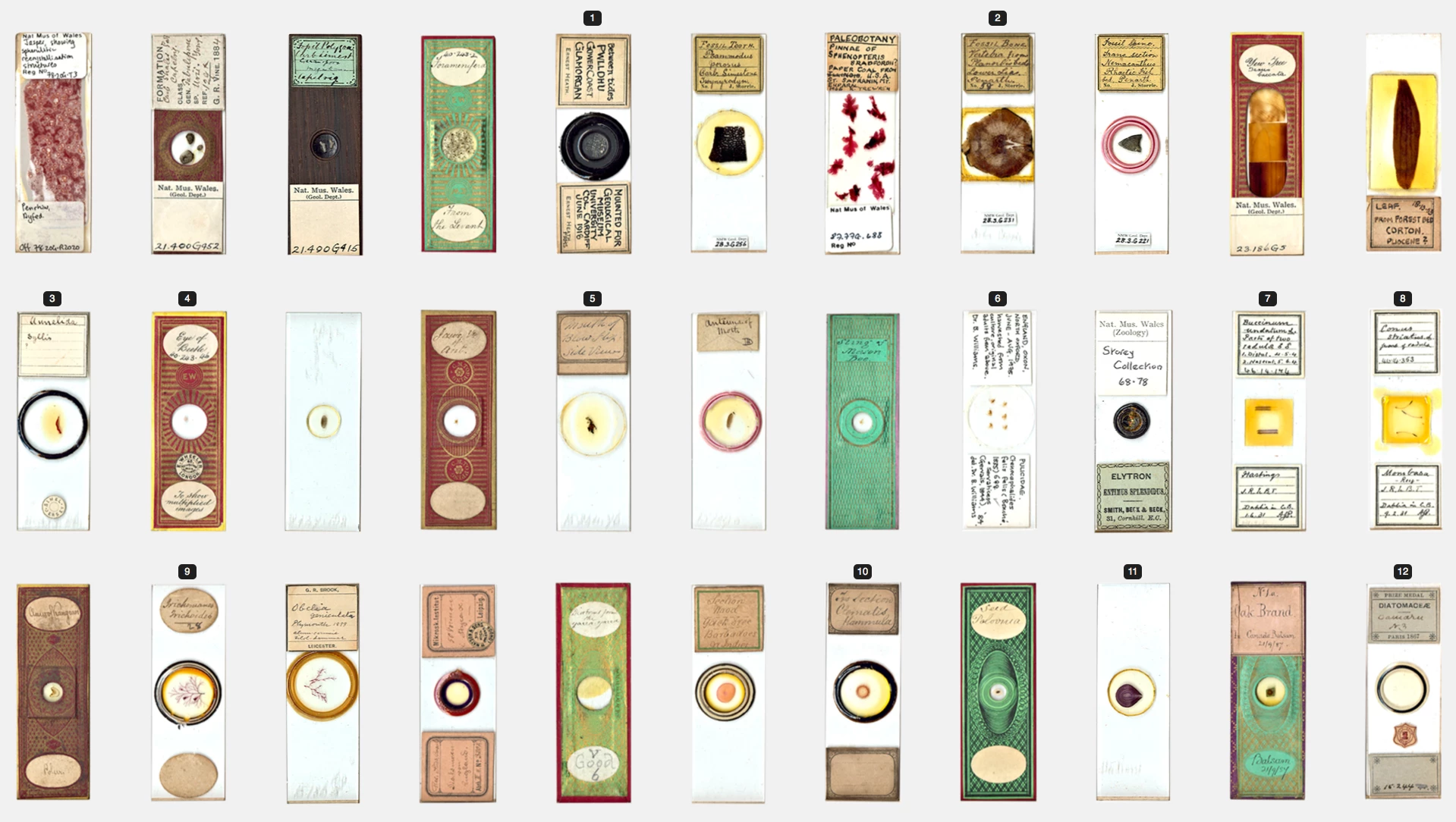

• One general overview image of 36 slides
• 12 very high resolution images of some of those slides
• 27 inch touch screen
• Complement an actual Micrarium, which would be displayed neatly above the touch screen
• Incorporate a Victoriana style
• Target audience: young folk

Flourishes

The high resolution slide images were always the prize, therefore it seemed obvious to sort out the zoom features first. Using the Javascript version of Zoomify (other javascript frameworks are available) gave us a good foundation to work on. We just needed to tap into their Zoomify Javascript code a little, then add our own layer of Javascript and graphical flourishes to make the design fit in with the exhibition outlines.

All the controls were laid out in plain sight, hopefully to reduce any learning curve when approaching the interactive; and since the touch screen is quite large (27 inches) we had the space.

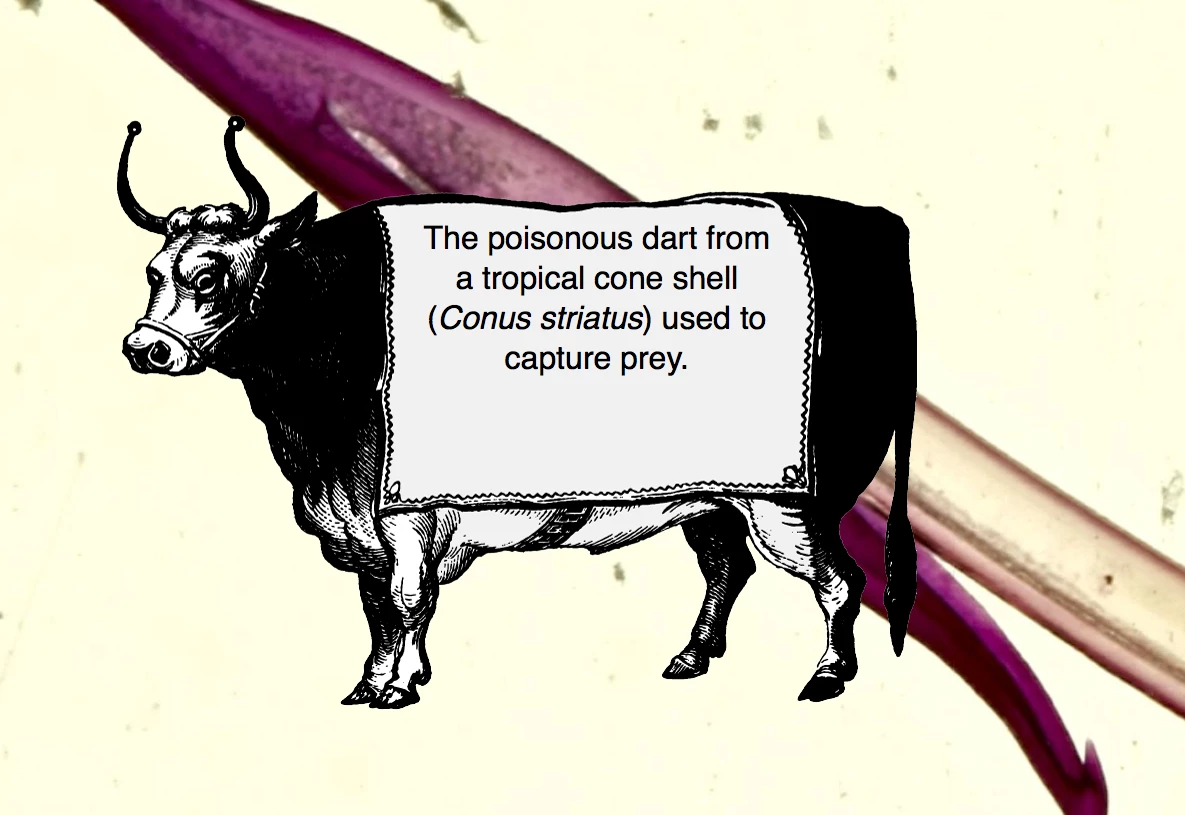

Five additional features were added to the zoom screen (picture 4):

• Zoom controls
• Navigation controls
• Home button
• Information button
• Change language (English/Welsh)

n.b. where possible I tried to avoid using words to describe button functions, hence why the home button is only an image, but this idea fell down a little when it became clear you couldn’t avoid a word or two to help the visitor work out what specimen they were observing.

Into the Arms of a Microscope

Once or twice someone may have caught me saying things like: “Plagioclase Feldspar” or “Olivine”. Anyhow, part of the fun with looking at slides is the process of selecting a new slide, I thought so anyway - you were never sure what would be on the other side of the glass.

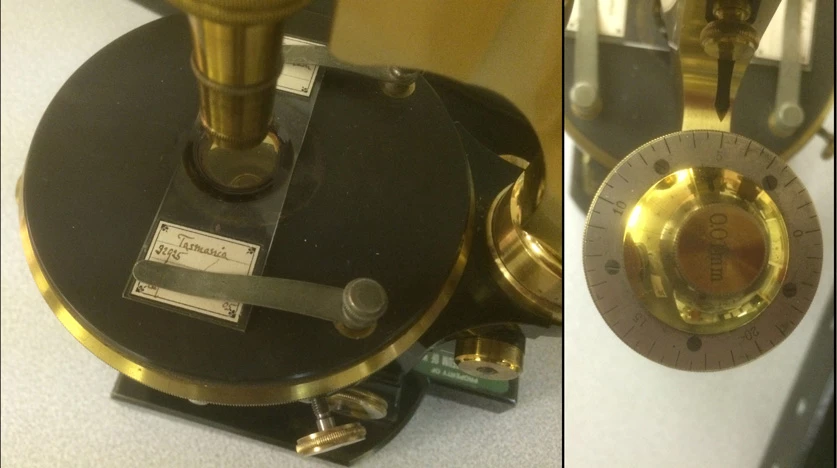

I wanted to avoid the conventional method of changing between images, which is usually to include a ‘next’ and ‘previous’ button; so tried to incorporate some of my vague science memories with a quick reconnaissance mission (picture 5) to see the microscope that was being prepped for the exhibition.

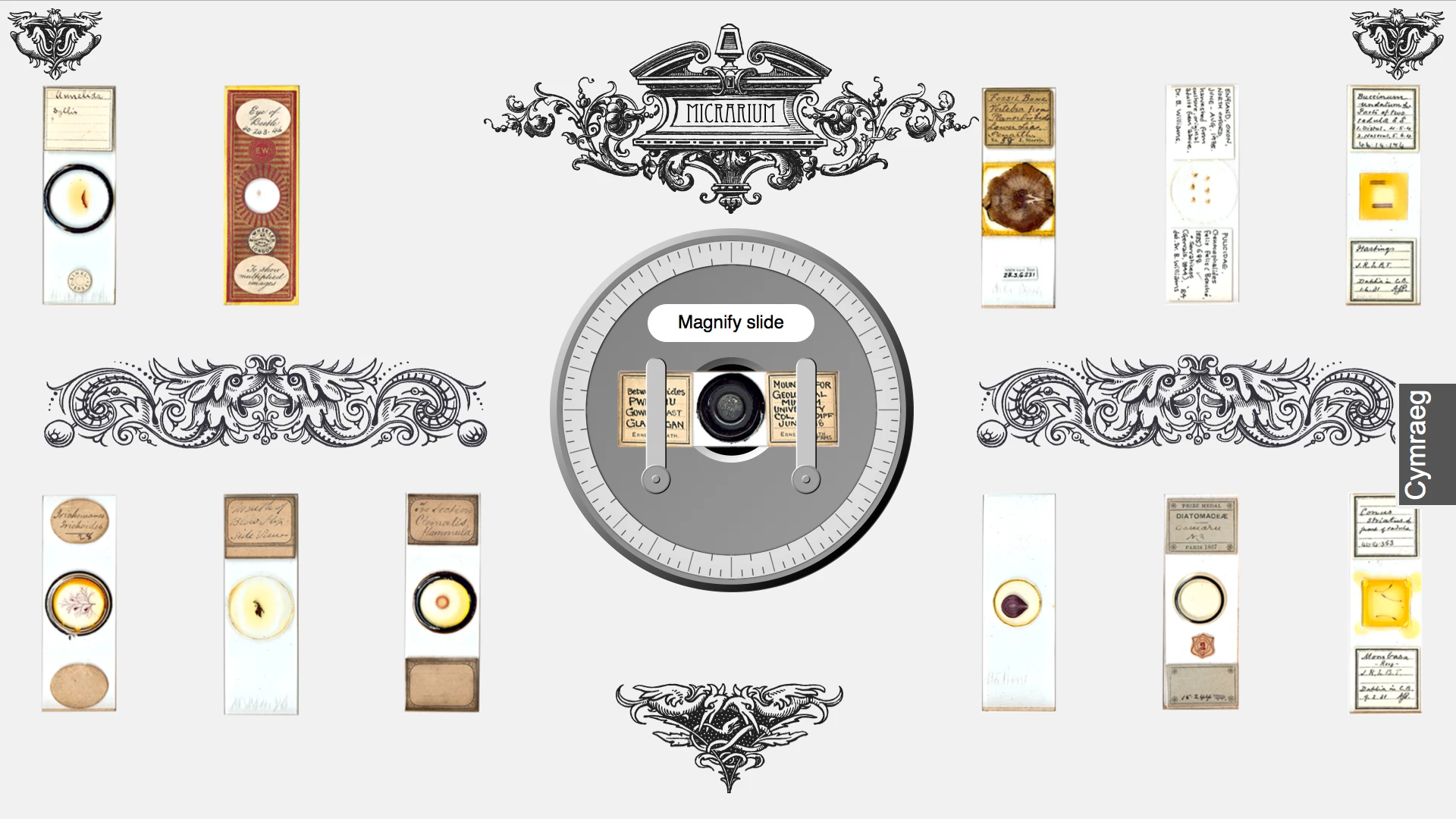

Since there were 36 lower resolution images on the home screen, but twelve high resolution images on the slide selection screen, it gave some space to move a simple microscope stand into view, which provided the excuse to animate the microscope arms and float the slides back and forth. The iris transition between the microscope slide view and the zoom view is loosely based on the idea of looking down a microscope eyepiece.

Intermittent Contact

The interactive was built on HTML and Javascript with animations mainly driven by CSS. Due to the amount of images used in this interactive (up to 120MB), the project was exported from Amgueddfacms CMS into a standalone ZIP file then installed onto the exhibition PC - this improves the interactive response times, since it doesn’t have to wait for any image files to download over a network connection.

We’ve been using Firefox for a while as its platform independent and has neat little add-ons (R-Kiosk and Block Site). In this case, the operating system is Windows 7, with a locked down user account which only has access to Firefox and the touch screen drivers.

Usually we use Google Analytics to record button events, to give us an indication of how much the interactives are being used, but Google Analytics is designed to work with regular domain websites, which is not the case when running locally from simple hard drive files - therefore the button events are recorded by the web server listening to AJAX calls from the kiosk.

Video Demo:

I've included a short demo video for posterity:

Saturday 19th July saw the official launch of the 'I Spy...Nature' Exhibition at National Museum Cardiff. The exhibition was officially opened by BBC wildlife presenter Dr Rhys Jones and many families were able to experience the exhibition first hand. Natural Science curators were also on hand showing a plethora of specimens from the Museum's Natural History Collections, including insects, marine invertebrates, fossils, fungi, plants, minerals and much more. The public helped to create fantastic modern and prehistoric scenes with beautifully coloured pictures.

Click here to find out more about the exhibition

As Steve said in his last blog posted in December, we’ve started work on growing the thatch for our new Iron Age farm. Alongside this work we’ve also been giving a lot of thought to the objects that will go inside the houses.  Far from being primitive, these replica objects will reflect the high level of knowledge and skill possessed by people who lived in Bryn Eryr over 2000 years ago. One of the first tasks is to furnish the round houses with all those essential objects that no self-respecting Iron Age household could do without, such as plates, bowls, utensils, buckets , storage containers, shelves, barrels, weaving looms, beds, just to name a few.

In this period all these items were made from wood, but we have a problem, wood deteriorates quickly in the ground so objects made from this material rarely survive.  However, we think we can find out more about the wooden objects they would have had by studying the carpentry tools available at this time. These were made from iron and because of this have survived in greater abundance. Ancient iron-work is often much underrated as it doesn’t look very attractive, but when trying to recreate everyday life the information domestic ironwork objects can provide is invaluable.

The first stage of making the replicas was to search the archaeological collections for any original Iron Age carpentry tools.  Much to my delight we had quite a lot of material and could virtually recreate a whole tool kit from examples found throughout Wales. Our Bryn Eryr tool kit will therefore consist of an axe, adze-hammer, gouge, chisels, files, drill bits and numerous wedges from small to large.  Timber in the Iron Age was divided up by splitting with wedges rather than cutting with a saw.  Saws did exist, but were small, similar to modern pruning saws today.

An Iron Age household would be equipped with a wide range of tools for a variety of purposes. Some of these objects appear strange to us today, but others are quite familiar. A 2,000 year old chisel found in the Roman fort of Brecon Gaer and a gouge from the Hill Fort at Castell Henllys wouldn’t look out of place in a carpenter’s tool kit today.

Once our tool kit had been compiled from the examples in the collection, the next step was to make working replicas that could be used by our craftspeople to recreate the objects for Bryn Eryr.

Careful conservation of the original tools had preserved some of the original surfaces. Marks on these surfaces enabled our blacksmith 2000 years later to work out how they were made and reproduce the replicas as accurately as possible.  The replicas are recreated in wrought iron like the originals, which is much softer than the steel used today, so it will be interesting to see how these tools perform? Will we be able to produce a decent cutting edge, how quickly will this edge dull and how often will it need to be sharpened?

Making the tool heads is only half the story, these tools can’t be used without handles!  None of the originals survive and from the shape of some tools we just can’t pop modern handles on them.  We know our tools once had wooden handles, because in some cases the deteriorating iron around the socket  had made a cast of the wood surface before the handle disappeared.  Using a combination of this information and some surviving material from elsewhere, plus the expertise of our own carpenters and estate workers, we managed to reproduce handles to complete the tools.

Now all we have to do is see if they work! More importantly have we still got the expertise to use these tools properly? Hopefully by using them we’ll gain an insight into the skill of our Iron Age carpenters.  I’m sure they would be laughing themselves silly if they could see our efforts today, but we have to start somewhere!

So, how did our tools perform? Its early days, but everyone including our craftspeople are impressed. They appear to be performing well, we even managed to split a large piece of timber with our wedges.  It probably explains why so many of these wedges end up in our collection, they tend to get lost inside the timber during splitting and fall to the ground where they are difficult to spot!

We hope to undertake more experimental work to assess the performance of these tools, so keep watching this space, but in the mean time we have to crack on, there’s the contents of a roundhouse to make!

As many regular visitors to St Fagans will know, our much-loved Celtic Village was closed earlier in the year. Twenty years seems to be about the normal life-span for reconstructed Iron Age roundhouses – the timbers decay and they begin to get a bit wobbly after that. To replace it we're going to be building a new reconstruction based on a 2,000 year old Iron Age farmstead on Anglesey called Bryn Eryr, and just recently we reached a really exciting milestone along the way.

The Bryn Eryr roundhouses consisted of two buildings built side-by-side. Their walls were made of packed clay (probably mixed with grit and straw, like Wales's traditional clom-built houses) and the roofs were thatched. We've had a lot of discussions about what we should use to thatch them. Naturally the roofs of the original buildings haven't survived, but we do know that its Iron Age owners had access to spelt – an early form of wheat – because charred grains were found at the site. From there the argument goes, if they were harvesting spelt grains to make their bread they also had their hands-on a useful thatching material, spelt straw.

So, we thought, St Fagans is surrounded by farm land, we've got an excellent farming team, and lots of enthusiasm, why not try to grow a crop of spelt ourselves and see whether we can thatch our next Iron Age farmstead with it?

There are a lot of uncertainties involved in this, many things can go wrong between the idea and the harvesting but St Fagans is part of an EU collaboration which encourages just this kind of experimental research. So thanks to the OpenArch project, with its Culture programme funding, and a lot of advice from experts in the field (apologies for the pun), we've decided to give it a go.

A few months ago we ploughed 3.4 hectares (8.4 acres) just outside the main museum site. This looks like an enormous area when you're stood beside it, but we're told this is what we need in order to produce enough straw to thatch two large roundhouses.

With the ploughing done, our Learning Team organised an opportunity for school groups to come out and see what we were up to. This was followed by the museum's archaeologists bringing together a team of volunteers who walked the area in search of any artefacts that may have been turned up by the plough. The finds from this have yet to be analysed but already we can see that the area had been visited by prehistoric hunter-gatherers, a 13th-century traveller who lost some loose change, and many other more recent people.

And then it rained, and rained and rained. Our spelt seed arrived and was placed in a barn, and still it rained. I was beginning to get very worried. It's all very well having a plan to grow a crop of Iron Age wheat, but that's not going to happen if the seed stays in sacks. Then a few weeks the weather cleared up, the ground dried sufficiently and we finally got a chance to plant.

Then we waited… Would anything happen? Had we left it too late? Would frosts / rain / snow put a stop to our plans? Happily not! Last week we found the first seeds had germinated. I’m going out to the field again today to check on its progress. Will the shoots be showing? Have we got the spacing of the seed right? Will the rabbits leave it alone? Will it grow tall? I feel like an expectant father all over again.
